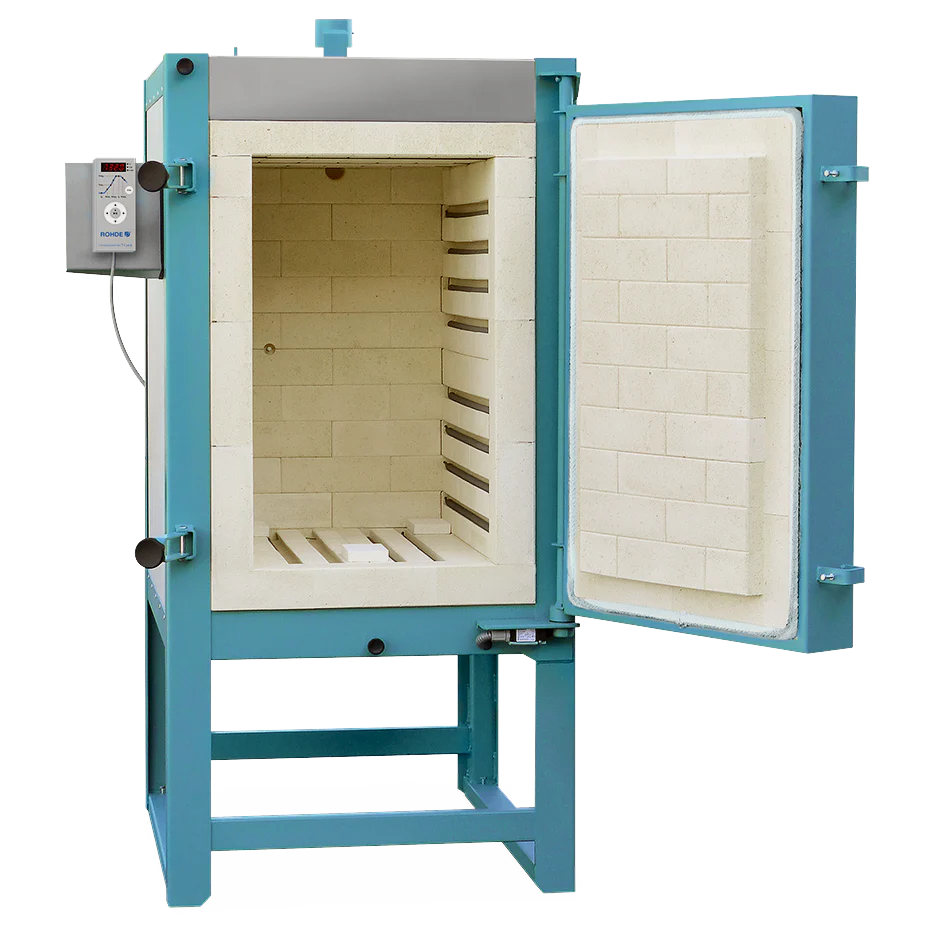

The KE-B series is a 3-sided kiln, having elements in the two sides and the floor. Cubic sizes range from the very small 35 Litres to 210 Litres, making it attractive for the hobby and less productive institution.
Be aware that although power will be small in relation to the size on offer, it may be at the expense of time, thus firings could take longer. However, it does have most of the virtues of the more expensive kilns see ‘Special features’ in the list below.
With all the Rohde Front Loading kilns, there is a comprehensive list of accessories that will customize your kiln further. See pdf (see page 33) attached to this list for further details. Contact us on the number below for advice, we can then create a bespoke order for you containing any extras.
Kiln comes with 3 years warranty*.
*Does not include element wear, shelf damage or improper use.
Technical Specifications
Electrical:
-
8kW/35A 230V single phase, 63 amp 3-pin CEE plug and cable.
-
8kW/12A (per phase) 400V three phase, 16 amp 5-pin CEE plug and cable.
Maximum Temperature: 1280°C.
Equipment: Type 'S' thermocouple.
Dimensions:
- Internal dimensions: 450mm x 450mm x 640mm (W x D x H)
- External dimensions: 760mm x 900mm x 1600mm (W x D x H)
- Weight: 330kg
- Volume: 130 Litres
Furniture set:
- 3 x 420mm x 400mm x 15mm kiln shelves
- 6 x 25, 50, 75 and 100mm props
CE Certified
For costs on firing, see product attachments
Controller
The new European ST 310 Stafford controller uses its simple firing graph to easily see what stage your firing is in. The ST 310 is a standard issue with a Rohde kiln but you can upgrade to the ST 411 for more program spaces and segments.
Visit the Rohde website for more information on the ROHDEgraph app.
