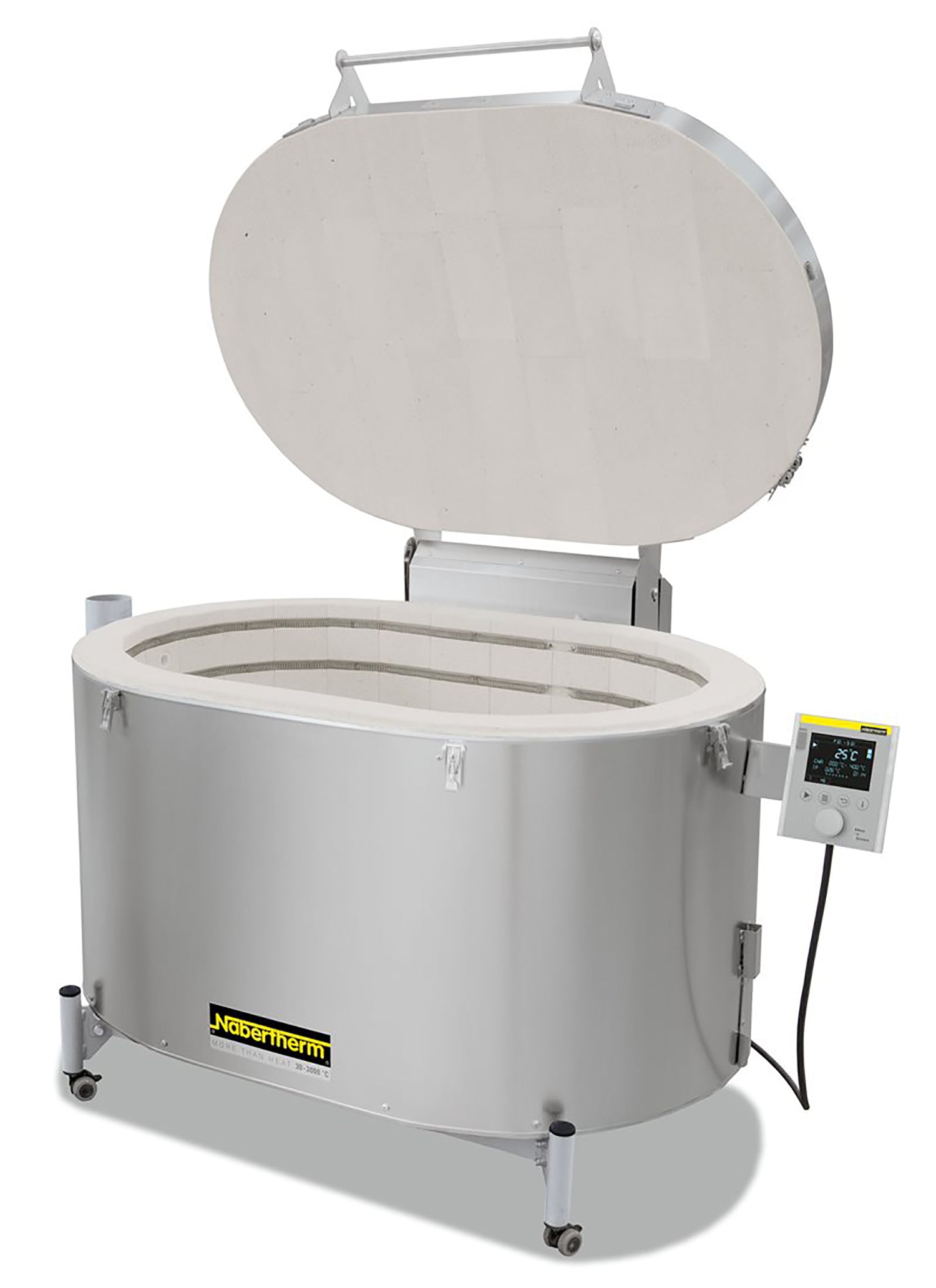

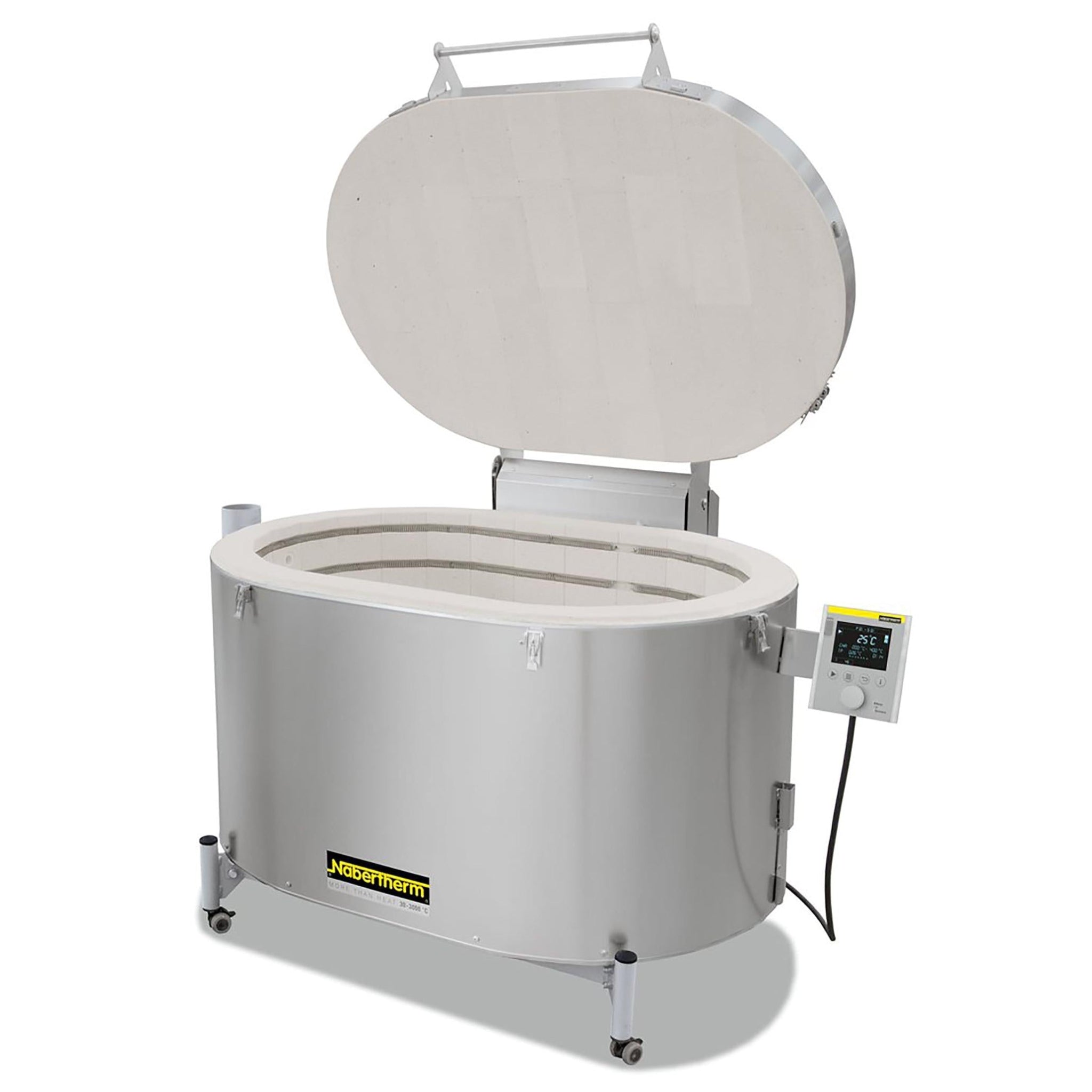

Attractive design, low weight and great firing results are only a few of the advantages of the Nabertherm top loading kilns. Castors come as a standard feature for ease of mobility, this is the perfect kiln for hobbyists or small workshops.
- Heating elements embedded in grooves, heating from all sides
- Top quality heating elements, optimum wire gauge and length for long life
- Solid state relays provide for low noise operation
- Rapid switching cycles result in precise temperature control
- Type S thermocouple
- Lid interlock safety switch
- Multiple layers of insulation for low power consumption and low exterior temperatures
- High quality, energy saving, special purpose back insulation (not on Top 45 & Top 60 models)
- Housing made from sheets of textured stainless steel
- Lid with adjustable quick release lock and padlock hasp
- Wear free lid seal (brick on brick)
- Powerful gas dampers make lid opening very easy
- Infinitely adjustable air inlet in opening in the kiln bottom for good ventilation and short cooling times
- Exhaust air outlet on furnace side with stub for pipe of 80mm diameter
- Lockable castors for easy transport of kiln without the need for lifting
- GS safety mark for controlled safety
Max Temp ºC 1320
Int Dimensions (mm) W-930 x D-590 x H-460
Ext Dimensions (mm) W-1100 x D-1030 x H-930
Output 15 kW
Electrical Connection 3-Phase
Weight 150kg
