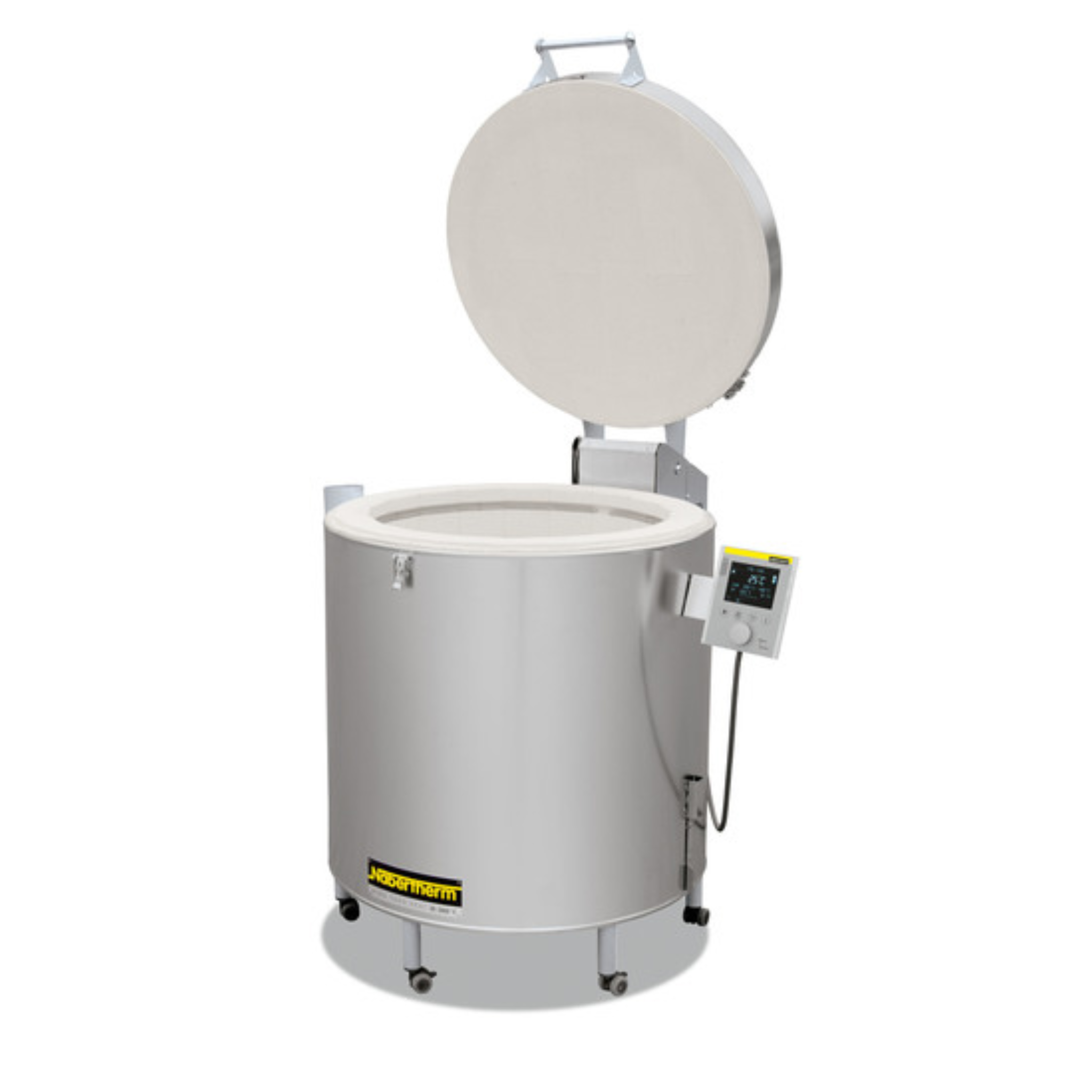

Nabertherm Top 100 Kiln with C540 Controller
The attractive design, low weight, and unbeatable price-performance ratio are just a few of the advantages of our top loaders. These models always deliver perfect firing results and are the right choice for hobby potters and workshops.
The particularly energy-saving refractory insulation and energy efficient backing insulation ensure that a maximum temperature of 1320 °C is reached with low electrical connected loads.
These top loaders are ideal for working temperatures between 900 °C and 1230 °C. For intensive professional use, we recommend our rectangular top loaders or chamber kilns with heating from five sides.
Standard design:
- Heating elements protected in grooves, heating from all around
- Two-layer refractory insulation and energy saving backing insulation
- Thermocouple protected in the kiln wall
- Sturdy, locking castors for easy movement of the kiln
- Defined application within the constraints of the operating instructions
Internal Dimentions 480mm Diameter x 570mm Height
Volume 100 L
Outer Dimentions 660mm W x 970mm D x 1000mm H
7KW 30AMP Supply - Single Phase
102KG Weight
COMFORT CONTROLLER C540
Like Basic Controller, but
STANDARD EQUIPMENT
- Transparent, graphic display of the temperature curves
- Clear presentation of the process data
- 24 operating languages selectable
- Consistent, attractive design
- Easily understandable symbols for many functions
- Precise and accurate temperature control
- User levels
- Program status display with estimated end time and date
- Documentation of the process curves on USB storage medium in .csv file format
- Service information can be read out via USB stick
- Clear presentation
- Plain text display
- Configurable for all furnace families
- Can be parameterized for the different processes
